Bio-PREP Nucleic acid extraction system

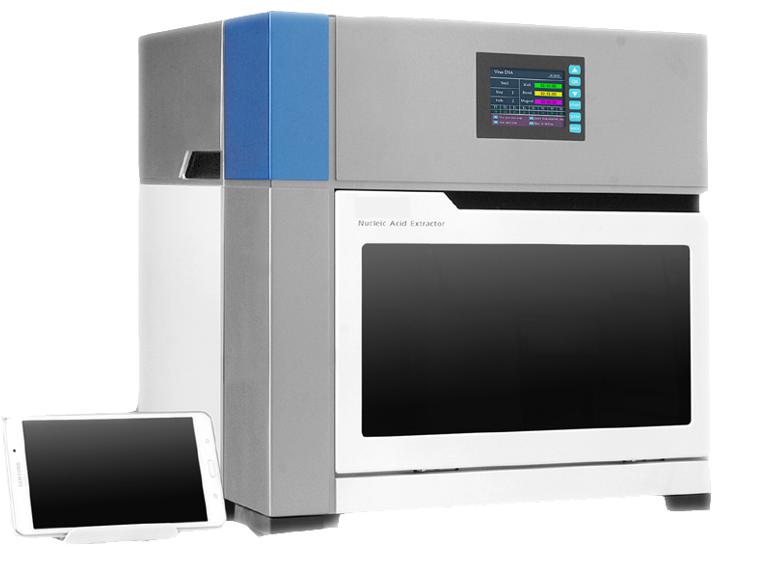

Automated DNA & RNA extraction system

Description

Bio-PREP is an automated system for performing DNA & RNA extraction from Plasma, Whole Blood, DSP, FFPE, Stool, Buccal swabs…

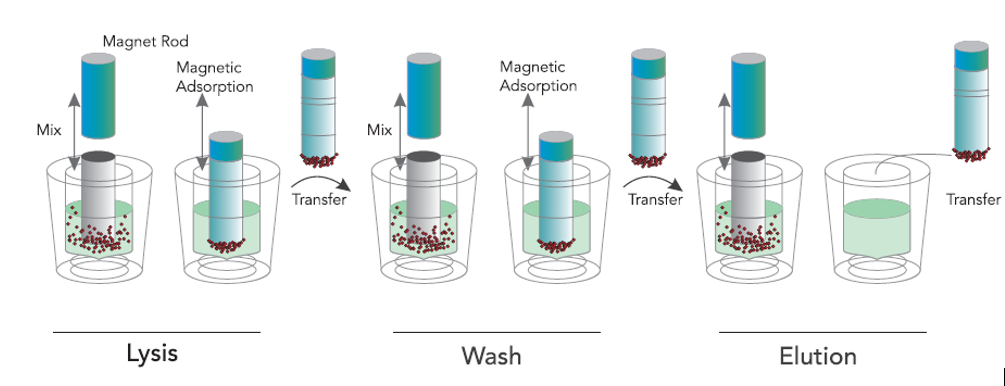

Principe : magnetic bead-based solution

Flexible choice for a reliable result :

Product features

Items

Parameters

Processing volume

30 – 1000µL

Capacity

16, 32 or 48 samples

Collection efficiency of the magnetic particles

≥ 95%

Heating temperature

Room temperature to 120°C

Processing mode

Multi-mode, multi-speed

Reagents

Reagents suitable for Magnetic bead method

Operation Interface

Touch-control operation

Storage capacity

15 pre-installed protocols in main unit, unlimited in pad

Protocol management

Create, edit, delete protocol mode

Decontamination

UV light

Computer interface

USB

Network communication

Ethenet (optional)

Dimensions (WxLxH)

440 x 435 x 445 mm

Weight

31.5 kg

Power requirements

AC 110 / 230V, 50Hz, 600W

Temperature allowed during operation

10 – 40°C

Relative humidity allowed during operation

< 80%
